cil::OrientationLocator Class Reference

This class inherits from the PositionLocator class and it adds three perpendicular arc handlers on the basis of the parent class, enabling rotation around three different direction. More...

#include <locator.h>

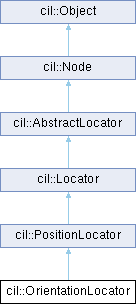

Inheritance diagram for cil::OrientationLocator:

Public Member Functions
	OrientationLocator ()
virtual	~OrientationLocator ()
Public Member Functions inherited from cil::PositionLocator
	PositionLocator ()
virtual	~PositionLocator ()
Public Member Functions inherited from cil::Locator
	Locator ()
virtual	~Locator ()
void	setTransform (const Matrix4f &transform)
	Sets the transform matrix of this locator node.
virtual void	update (const Handler &handler, Modifier modifier=Modifier::None)
Public Member Functions inherited from cil::AbstractLocator
	AbstractLocator ()
virtual	~AbstractLocator ()
void	bind (const std::string &name, std::function< void()> callback)
void	unbind (const std::string &name)
void	send (const std::string &name)
Public Member Functions inherited from cil::Object
	Object ()
virtual	~Object ()

Additional Inherited Members
Public Types inherited from cil::Locator
enum class	Modifier {   None = 0x0000 , Shift = 0x0200 , Ctrl = 0x0400 , Alt = 0x0800 ,   Meta = 0x1000 }
	The Modifier enumeration defines various modifier keys for handling different keyboard events. More...
Public Attributes inherited from cil::Locator
std::vector< std::shared_ptr< Handler > >	handlers
	Handler is the draggable part of a Locator. A locator has one or multiple handlers which prodivde different interaction methods.
Public Attributes inherited from cil::Node
std::string	name
	This memeber stores the name of the node.
MeshPtr	mesh
	This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.
std::shared_ptr< std::vector< NodePtr > >	children
	This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.
Matrix4fPtr	transform
	This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.
BoundingBoxPtr	boundingBox
	This member is a shared pointer to a BoundingBox.
MaterialPtr	material
	This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).
GeometryPtr	geometry
	This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.
QueryPtr	query
	This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.
Static Public Attributes inherited from cil::Locator
static std::map< std::string, Vector3f >	trans
	This declaration defines a map object named trans which associates string keys with Vector3f values. The vector3f value represents a 3D vector defining the translation direction.
static std::map< std::string, Matrix4f >	rot
	Similar to the map of trans, the vector3f value in this map represents a 3D vector defining the rotation axis.

Detailed Description

This class inherits from the PositionLocator class and it adds three perpendicular arc handlers on the basis of the parent class, enabling rotation around three different direction.

Constructor & Destructor Documentation

OrientationLocator()

cil::OrientationLocator::OrientationLocator

(

)

~OrientationLocator()

virtual cil::OrientationLocator::~OrientationLocator ( )

virtual
