cil::Handler Class Reference

The Handler class, inheriting from Node, represents a draggable element within a Locator object. Users can click upon the handler and drag it to a new location. More...

#include <handler.h>

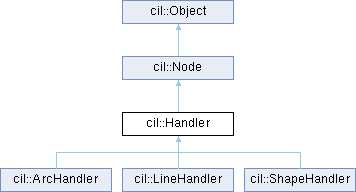

Inheritance diagram for cil::Handler:

Public Member Functions
	Handler (const std::shared_ptr< Matrix4f > &matrix)
virtual	~Handler ()
virtual float	hit (const Ray &r)
	Calculates and returns the distance between the cursor position and the geometry of the handler(in floating-point format).
virtual bool	begin (const Ray &r)
	Initiates the update process and returns success(always true).
virtual bool	update (const Ray &r)
	Moves the handler by adjusting its transformation matrix to match the cursor's position.
virtual bool	end (const Ray &r)
	Completes the update process and returns success(always true).
bool	hilited () const
	Indicates whether the Handler is currently highlighted by returning a boolean value(true for highlighted, false for not).
void	setHilited (bool hilited)
	Sets the highlighted state of the Handler to either true(highlighted) or false(not highlighted).
void	updateColor ()
Public Member Functions inherited from cil::Object
	Object ()
virtual	~Object ()

Static Public Attributes
static float	s_handlerScale
	This member variable holds the length scale factor of the Handler geometry.

Protected Attributes
bool	m_hilited = false
std::shared_ptr< HandlerBuilder >	m_builder
std::shared_ptr< Matrix4f >	m_matrix
Matrix4f	m_initial
Vector3f	m_initialPoint
Vector3f	m_initialDir

Additional Inherited Members
Public Attributes inherited from cil::Node
std::string	name
	This memeber stores the name of the node.
MeshPtr	mesh
	This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.
std::shared_ptr< std::vector< NodePtr > >	children
	This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.
Matrix4fPtr	transform
	This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.
BoundingBoxPtr	boundingBox
	This member is a shared pointer to a BoundingBox.
MaterialPtr	material
	This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).
GeometryPtr	geometry
	This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.
QueryPtr	query
	This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.

Detailed Description

The Handler class, inheriting from Node, represents a draggable element within a Locator object. Users can click upon the handler and drag it to a new location.

Constructor & Destructor Documentation

Handler()

cil::Handler::Handler

(

const std::shared_ptr< Matrix4f > &

matrix

)

~Handler()

virtual cil::Handler::~Handler ( )

virtual

Member Function Documentation

begin()

virtual bool cil::Handler::begin ( const Ray & r )

virtual

Initiates the update process and returns success(always true).

end()

virtual bool cil::Handler::end ( const Ray & r )

virtual

Completes the update process and returns success(always true).

hilited()

bool cil::Handler::hilited

(

)

const

Indicates whether the Handler is currently highlighted by returning a boolean value(true for highlighted, false for not).

hit()

virtual float cil::Handler::hit ( const Ray & r )

virtual

Calculates and returns the distance between the cursor position and the geometry of the handler(in floating-point format).

Reimplemented in cil::ArcHandler, cil::LineHandler, and cil::ShapeHandler.

setHilited()

void cil::Handler::setHilited

(

bool

hilited

)

Sets the highlighted state of the Handler to either true(highlighted) or false(not highlighted).

update()

virtual bool cil::Handler::update ( const Ray & r )

virtual

Moves the handler by adjusting its transformation matrix to match the cursor's position.

Reimplemented in cil::ArcHandler, cil::LineHandler, and cil::ShapeHandler.

updateColor()

void cil::Handler::updateColor

(

)

Member Data Documentation

m_builder

std::shared_ptr<HandlerBuilder> cil::Handler::m_builder

protected

m_hilited

bool cil::Handler::m_hilited = false

protected

m_initial

Matrix4f cil::Handler::m_initial

protected

m_initialDir

Vector3f cil::Handler::m_initialDir

protected

m_initialPoint

Vector3f cil::Handler::m_initialPoint

protected

m_matrix

std::shared_ptr<Matrix4f> cil::Handler::m_matrix

protected

s_handlerScale

float cil::Handler::s_handlerScale

static

This member variable holds the length scale factor of the Handler geometry.
