cil::Node Class Reference

The Node class represents a node in a scene graph. A scene graph is a hierarchicaldata stucture used to organize and manage 3D objects in a scene. More...

#include <node.h>

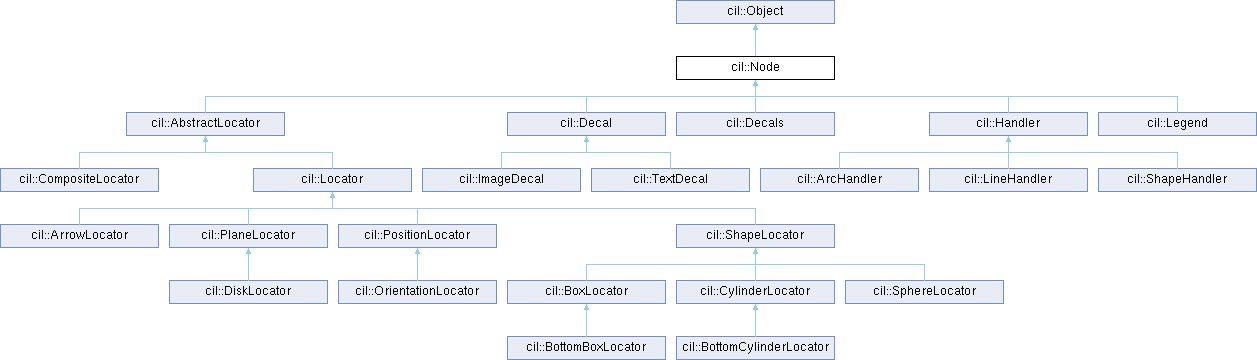

Inheritance diagram for cil::Node:

Public Attributes
std::string	name
	This memeber stores the name of the node.
MeshPtr	mesh
	This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.
std::shared_ptr< std::vector< NodePtr > >	children
	This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.
Matrix4fPtr	transform
	This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.
BoundingBoxPtr	boundingBox
	This member is a shared pointer to a BoundingBox.
MaterialPtr	material
	This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).
GeometryPtr	geometry
	This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.
QueryPtr	query
	This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.

Additional Inherited Members
Public Member Functions inherited from cil::Object
	Object ()
virtual	~Object ()

Detailed Description

The Node class represents a node in a scene graph. A scene graph is a hierarchicaldata stucture used to organize and manage 3D objects in a scene.

Member Data Documentation

boundingBox

BoundingBoxPtr cil::Node::boundingBox

This member is a shared pointer to a BoundingBox.

children

std::shared_ptr<std::vector<NodePtr> > cil::Node::children

This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.

geometry

GeometryPtr cil::Node::geometry

This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.

material

MaterialPtr cil::Node::material

This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).

mesh

MeshPtr cil::Node::mesh

This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.

name

std::string cil::Node::name

This memeber stores the name of the node.

query

QueryPtr cil::Node::query

This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.

transform

Matrix4fPtr cil::Node::transform

This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.
