The Locator class defines . It has specialized subclasses with methods for interacting with specific Handler objects. More...

#include <locator.h>

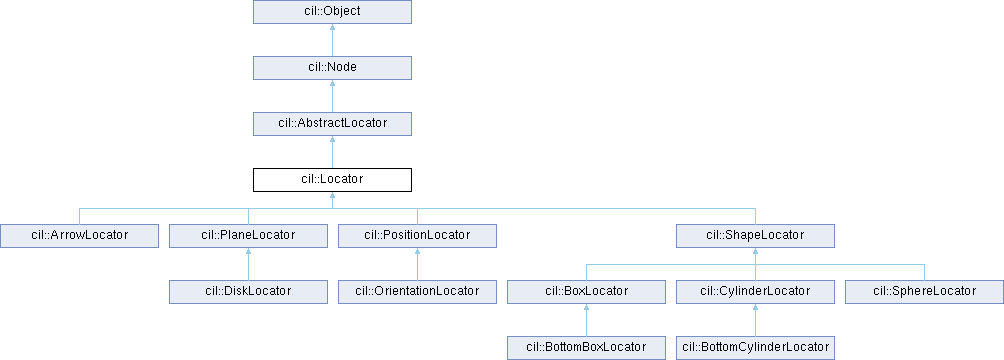

Inheritance diagram for cil::Locator:

Public Types
enum class	Modifier { None = 0x0000 , Shift = 0x0200 , Ctrl = 0x0400 , Alt = 0x0800 , Meta = 0x1000 }
	The Modifier enumeration defines various modifier keys for handling different keyboard events. More...

Public Member Functions
	Locator ()

virtual	~Locator ()

void	setTransform (const Matrix4f &transform)
	Sets the transform matrix of this locator node.

virtual void	update (const Handler &handler, Modifier modifier=Modifier::None)

Public Member Functions inherited from cil::AbstractLocator
	AbstractLocator ()

virtual	~AbstractLocator ()

void	bind (const std::string &name, std::function< void()> callback)

void	unbind (const std::string &name)

void	send (const std::string &name)

Public Member Functions inherited from cil::Object
	Object ()

virtual	~Object ()

Public Attributes
std::vector< std::shared_ptr< Handler > >	handlers
	Handler is the draggable part of a Locator. A locator has one or multiple handlers which prodivde different interaction methods.

Public Attributes inherited from cil::Node
std::string	name
	This memeber stores the name of the node.

std::shared_ptr< Mesh >	mesh
	This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.

std::shared_ptr< std::vector< std::shared_ptr< Node > > >	children
	This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.

std::shared_ptr< Matrix4f >	transform
	This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.

std::shared_ptr< BoundingBox >	boundingBox
	This member is a shared pointer to a BoundingBox.

std::shared_ptr< Material >	material
	This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).

std::shared_ptr< Geometry >	geometry
	This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.

std::shared_ptr< Query >	query
	This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.

Static Public Attributes
static std::map< std::string, Vector3f >	trans
	This declaration defines a map object named trans which associates string keys with Vector3f values. The vector3f value represents a 3D vector defining the translation direction.

static std::map< std::string, Matrix4f >	rot
	Similar to the map of trans, the vector3f value in this map represents a 3D vector defining the rotation axis.

Detailed Description

The Locator class defines . It has specialized subclasses with methods for interacting with specific Handler objects.

Member Enumeration Documentation

◆ Modifier

enum class cil::Locator::Modifier

strong

The Modifier enumeration defines various modifier keys for handling different keyboard events.

Enumerator
None
Shift
Ctrl
Alt
Meta

Constructor & Destructor Documentation

◆ Locator()

cil::Locator::Locator ( )

◆ ~Locator()

virtual cil::Locator::~Locator ( )

virtual

Member Function Documentation

◆ setTransform()

void cil::Locator::setTransform ( const Matrix4f & transform )

Sets the transform matrix of this locator node.

◆ update()

virtual void cil::Locator::update	(	const Handler &	handler,
		Modifier	modifier = Modifier::None )

virtual

Reimplemented in cil::BottomBoxLocator, cil::BottomCylinderLocator, cil::BoxLocator, cil::CylinderLocator, and cil::SphereLocator.

Member Data Documentation

◆ handlers

std::vector<std::shared_ptr<Handler> > cil::Locator::handlers

Handler is the draggable part of a Locator. A locator has one or multiple handlers which prodivde different interaction methods.

◆ rot

std::map<std::string, Matrix4f> cil::Locator::rot

static

Similar to the map of trans, the vector3f value in this map represents a 3D vector defining the rotation axis.

◆ trans

std::map<std::string, Vector3f> cil::Locator::trans
