BoxLocator class, inheriting from the ShapeLocator class, is specifically designed for bounding boxes. It's constructed with a box geometry and includes six shape handlers, one for each face of the box. More...

#include <locator.h>

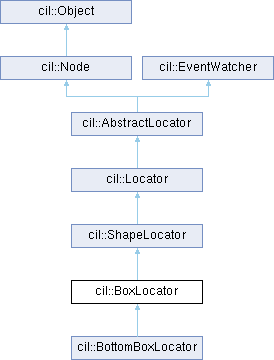

Inheritance diagram for cil::BoxLocator:

Public Member Functions
	BoxLocator ()

virtual	~BoxLocator ()

virtual void	update (const Handler &handler, Modifier modifier=Modifier::None)
	Scaling the box geometry boundaries based on the translation of its shape handlers and keyboard modifier key pressed during the event.

Public Member Functions inherited from cil::ShapeLocator
	ShapeLocator ()
	Builds a shape locator with an initialized local matrix which represents the geometric extent in 3D space.

virtual	~ShapeLocator ()

std::shared_ptr< Matrix4f >	local ()
	This function can return the local matrix of the current shape locator.

void	setLocal (const std::shared_ptr< Matrix4f > &local)
	Sets the local matrix of the current shape locator.

void	updateHandler ()
	Update the transformation matrix of the shape locator's other handlers once upon the shape locator is updated.

Public Member Functions inherited from cil::Locator
	Locator ()

virtual	~Locator ()

void	setTransform (const Matrix4f &transform)
	Sets the transform matrix of this locator node.

Public Member Functions inherited from cil::AbstractLocator
	AbstractLocator ()

virtual	~AbstractLocator ()

Public Member Functions inherited from cil::Object
	Object ()

virtual	~Object ()

Public Member Functions inherited from cil::EventWatcher
	EventWatcher ()

virtual	~EventWatcher ()

void	bind (const std::string &name, EventCallback callback)
	Binds a callback function to a specific event name.

void	send (const std::string &name)
	Triggers an event by its name.

Additional Inherited Members
Public Attributes inherited from cil::Locator
std::vector< std::shared_ptr< Handler > >	handlers
	Handler is the draggable part of a Locator. A locator has one or multiple handlers which prodivde different interaction methods.

Public Attributes inherited from cil::Node
std::string	name
	This memeber stores the name of the node.

std::shared_ptr< Mesh >	mesh
	This member is a shared pointer to a Mesh object, which means the node has a 3D object with its geometry defined by a mesh.

std::shared_ptr< std::vector< std::shared_ptr< Node > > >	children
	This member is a dynamic array of shared pointers to the child Node objects. This allows the node to have a tree-like hierarchical structure.

std::shared_ptr< Matrix4f >	transform
	This member is a shared pointer to a Matrix4f object. This matrix represents the transformation(position, rotation, scale) applied to the current node and its descendants.

std::shared_ptr< BoundingBox >	boundingBox
	This member is a shared pointer to a BoundingBox.

std::shared_ptr< Material >	material
	This member is a shared pointer to a Mateiral object, which means the node can have its own material properties defining its appearance(color, texture, etc).

std::shared_ptr< Geometry >	geometry
	This member is a shared pointer to a Geometry object, which maybe used for specific geometric data relevant to the node, potentially associated with the mesh or for other rendering purposes.

std::shared_ptr< Query >	query
	This member is a shared pointer to a Query object, and it is some type of query operation performed on the node or its descendants.

Static Public Attributes inherited from cil::Locator
static std::map< std::string, Vector3f >	trans
	This declaration defines a map object named trans which associates string keys with Vector3f values. The vector3f value represents a 3D vector defining the translation direction.

static std::map< std::string, Matrix4f >	rot
	Similar to the map of trans, the vector3f value in this map represents a 3D vector defining the rotation axis.

Protected Attributes inherited from cil::ShapeLocator
std::shared_ptr< Matrix4f >	m_local

std::vector< std::string >	m_names

Detailed Description

BoxLocator class, inheriting from the ShapeLocator class, is specifically designed for bounding boxes. It's constructed with a box geometry and includes six shape handlers, one for each face of the box.

Constructor & Destructor Documentation

◆ BoxLocator()

cil::BoxLocator::BoxLocator ( )

◆ ~BoxLocator()

virtual cil::BoxLocator::~BoxLocator ( )

virtual

Member Function Documentation

◆ update()

virtual void cil::BoxLocator::update	(	const Handler &	handler,
		Modifier	modifier = Modifier::None )

virtual

Scaling the box geometry boundaries based on the translation of its shape handlers and keyboard modifier key pressed during the event.

Parameters

handler	The handler is the one which has been dragged.
modifier	The modifier key provides additional flexibility in controlling the update process. When set to Modifier::SHIFT, the box undergoes a dual-sided scaling operation.

Reimplemented from cil::Locator.

Reimplemented in cil::BottomBoxLocator.
