Dialog

Detailed Description​

The Dialog class is the base class of dialog windows. The dialog window is a top-level widget, it can be either modal or modeless:
A modal dialog is a dialog displayed using exec() that blocks input to other visible widgets, the user must finish interacting with the dialog and close it before they can access any other widgets.
A modeless dialog is a dialog displayed using open() that operates independently of other widgets.
The default location of the dialog is centered on the desktop.

ResizableDialog​

The ResizableDialog class A inherits from Dialog. The resizable dialog allows the users control the size of dialog by dragging the dragger in bottom right of this dialog.

Event​

For the resizable dialog, the resize event is emitted whenever the size of the dialog is changed.

// Listen for the resize event
dialog.bind('resized', (event: ResizeEvent) => {
    event.size; // The current size of the dialog.
});

Example code​

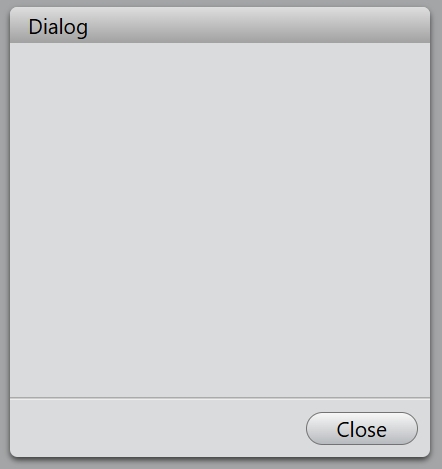

In the code below, you will create a dialog with a close button:

const dialog = new Dialog();
dialog.title = 'Dialog';
dialog.size = new Size(280, 300);
dialog.addButton('Close', (): void => {
    dialog.close();
});
dialog.exec();

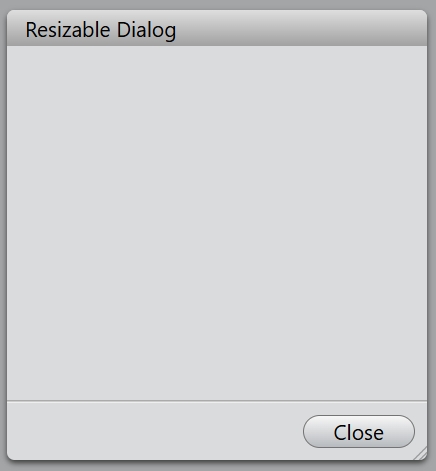

If you want to change the size of the dialog, you can use ResizableDialog class. The size range can be set through the minimumSize and maximumSize properties.

const dialog = new ResizableDialog();
dialog.title = 'Resizable Dialog';
dialog.size = new Size(280, 300);
dialog.minimumSize = new Size(140, 212);
dialog.maximumSize = new Size(640, 720);
dialog.addButton('Close', (): void => {
    dialog.close();
});
dialog.exec();
